Description

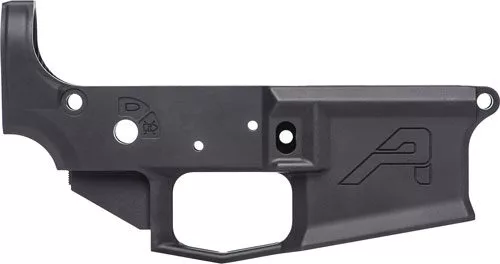

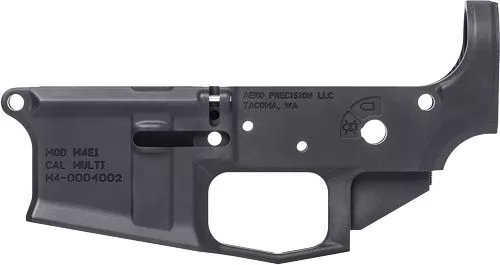

The M4E1 Lower Receiver delivers billet aesthetics in a forged package. This custom designed enhanced forging is machined from 7075-T6 Aluminum and compatible with all mil-spec AR15 parts. Aside from the visual upgrades this custom engineered design provides that challenge much more expensive billet options we have added several functional features to the lower receiver to simplify the assembly process for the at home builder.

Features:

  • Threaded Bolt Catch Roll Pin – Allows for simple installation of the bolt catch and virtually eliminates the chance to damage the finish during installation (pin included). 1/16" Hex Key required for assembly.
  • Integrated Trigger Guard – Eliminates the possibility of breaking the trigger guard tabs by integrating the trigger guard into the lower creating a stronger more rigid platform to build upon.
  • Upper Tension Screw – Allows users to fine tune the fit of the upper and lower receiver using a nylon tipped tensioning set screw inserted in the grip tang of the lower receiver. This provides a tight fit with any standard AR15 upper receiver.
  • Threaded Takedown Pin Detent Recess – Allows user to easily install the Takedown Pin detent and spring with the use of a 4-40 set screw (no more launching detents across the room).
  • Increased Magwell Flare – Increased the flare of the magwell to aid in quick and efficient magazine changes.
  • Marked and milled to accept short-throw safety selectors but will work with standard selectors as well.



Specifications:



  • Platform: AR15
  • Material: Machined from 7075-T6 forged aluminum
  • Finish: Anodized Black
  • Markings: "Cal Multi" "M4-" Serial Number Designation
  • Compatibility: Works with standard AR15 components and magazines
  • Weight(s): 8.61 oz
  • Other: Rear takedown pin detent hole is threaded for a 4-40 set screw. Threaded Bolt Catch Roll Pin (Included).
Additional information
UPC

815421022315

Manufacturer

Aero Precision

Manufacturer Part Number

APAR600001C

Caliber/Gauge

MULTI-CAL

Height

2.1000

Length

8.9500

Finish Type

CERAKOTE

State Restriction (IL)

NO SALE TO ILLINOIS PICA

Other Features

THREADED BOLT CATCH ROLL PIN

Stock Finish

NONE

Stock Material

NONE

Width

4.2000

Dimension

2.10 X 4.20 X 8.95

AR-15 Accessory

Yes

Product Type

Stripped

Finish

Black Hardcoat Anodized

Model

AR-15

Gun Model

AR-15

Gun Type

AR Platform

Material

7075 Aluminum

Action

Semi-Auto

Color

Black

Subcategory

Lower Receivers

Cartridge

.223 REM/5.56 NATO

Make

AR-15

Make/Model

AR-15

Style

Enhanced
